P120

HIGH-PERFORMANCE GENERAL PURPOSE RECORDING MICROPHONE

Watch the Project Studio Line video

CLEAR. ACCURATE. AFFORDABLE.

For project studios, home recording and stage

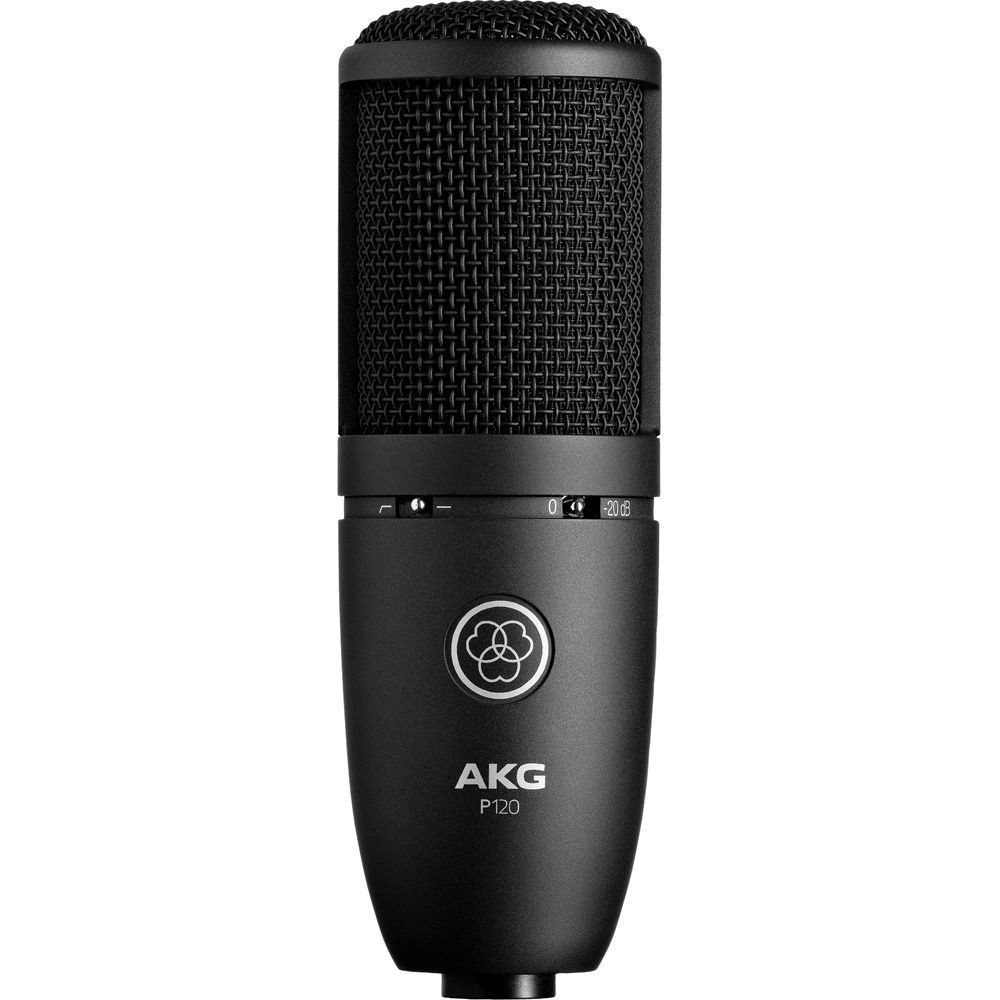

The P120 is a 2/3-inch diaphragm true condenser microphone that offers solidly built quality, outstanding performance and excellent value. The low-mass diaphragm delivers a clear sound with accurate sonic detail for vocals, speech and instrument recording in project studios and for home recording.



Rugged all-metal body and robust design

withstands tough day-to-day use



Switchable bass-cut filter

eliminates rumble or footfall noise



Switchable attenuation pad

for high SPL applications up to 150 dB SPL



TECHNICAL SPECIFICATION

General

Audio frequency bandwidth 20 to 20000 Hz

Equivalent noise level 19 dB-A

Sensitivity 24 mV/Pa

Signal to Noise 75 dB-A

Preattenuation Pad -20 dB

Bass cut filter 300 – 6 dB/octave Hz

Electrical impedance <= 200 Ohms

Recommended load impedance >= 1000 Ohms

Polar Patterns

Cardioid

Powering Interface

Voltage 44 to 52 V

Current <= 3 mA

Audio Output

Type Balanced XLR

Gender Male

Contacts 3-pin

Dimensions / Weight

Length 165 mm

Diameter 54 mm

Net Weight 455 g
