Product description

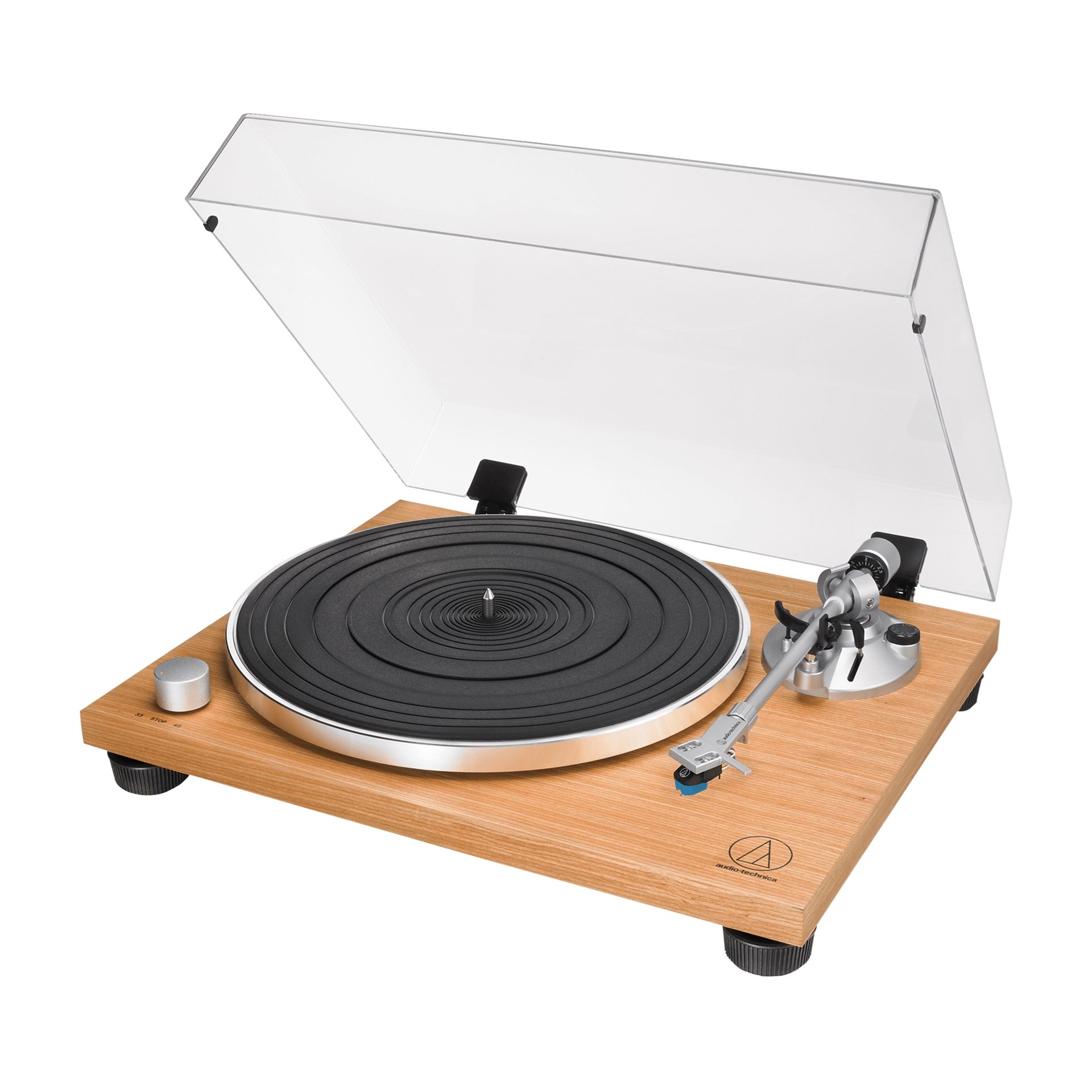

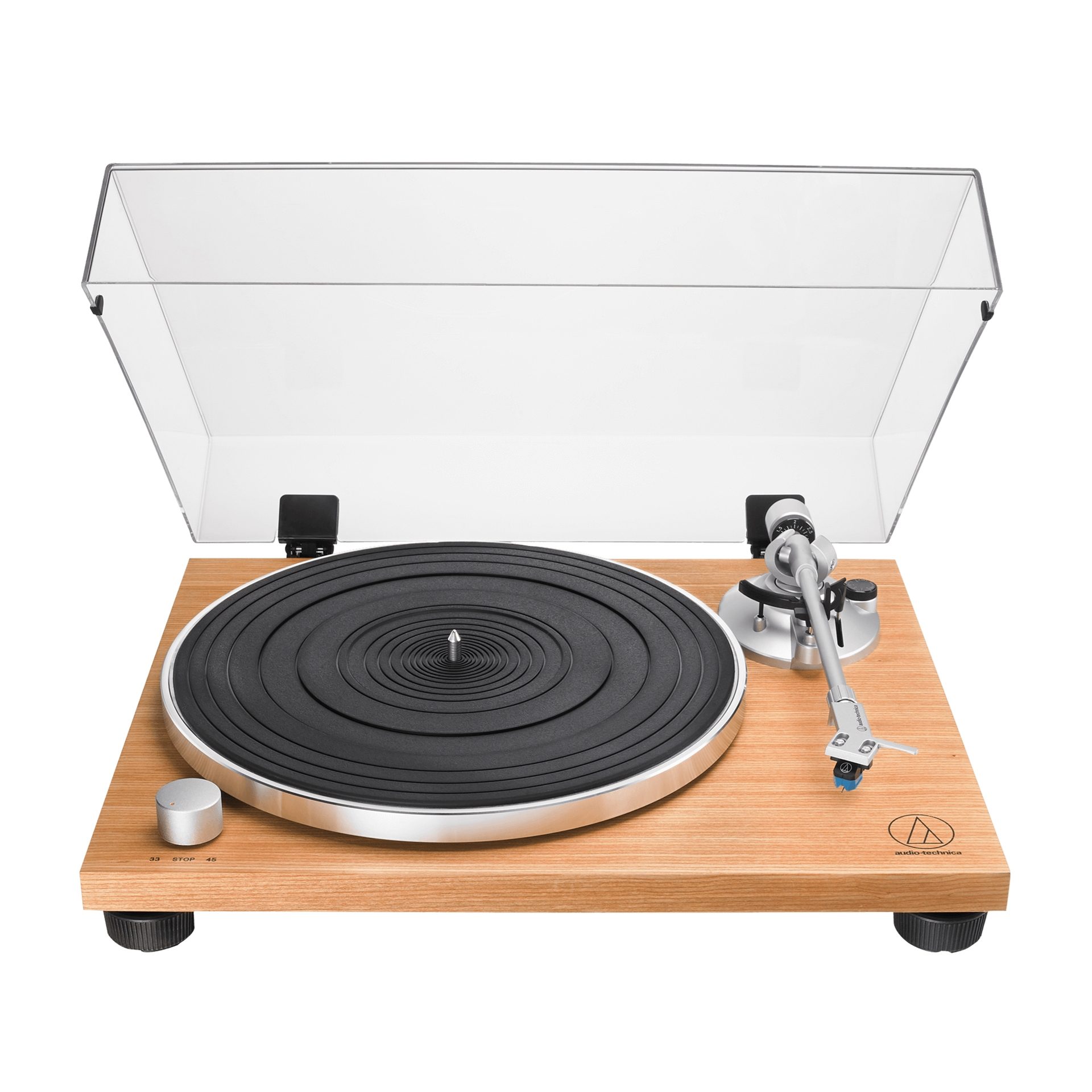

Audio Technica AT-LPW30TK
Fully Manual Belt-Drive Turntable
The Audio Technica AT-LPW30TK Is A Fully Manual, Belt-Drive Turntable Designed To Give You Optimal High-Fidelity Audio Reproduction From Vinyl.
The Two-Speed (33-1/3 And 45 Rpm) Turntable Features An Aesthetically Pleasing Anti-Resonance Mdf (Medium Density Fiberboard) Plinth With Simulated Teak Veneer To Limit Low-Frequency Acoustical Feedback.
The Turntable Includes A Straight Aluminum Tonearm With Adjustable Tracking Force And An At-Hs4 Universal ½”-Mount Headshell With An At-Vm95c Dual Moving Magnet Phono Cartridge.
Audio-Technica Has Been A Leader In Phono Cartridge Design For More Than 50 Years,
And That Expertise Shows In The Versatile, High-Performance At-Vm95c Cartridge, Which Comes With A 0.6 Mil Conical Stylus, But Is Also Compatible With Any Vm95 Series Replacement Stylus, Offering A Wide Choice Of Options For Every Budget And Application.
The At-Lpw30tk Is Equipped With A Built-In Selectable Phono Preamp And A Detachable Dual Rca Output Cable To Enable Direct Connection To Components With Or Without A Dedicated Phono Input.
Features
- Fully Manual, Belt-Drive Operation With Two Speeds: 33-1/3 And 45 Rpm
- Fully Manual Operation
- Adjustable Dynamic Anti-Skate Control
- Professional Anti-Resonance, Die-Cast Aluminum Platter With Rubber Mat
- At-Hs4 Universal ½”-Mount Headshell And At-Vm95c Dual Moving Magnet Phono Cartridge With 0.6 Mil Conical Stylus
- At-Vm95c Cartridge Is Compatible With Any Vm95 Series Replacement Stylus, Offering A Wide Choice Of Options For Every Budget And Application
- Straight Tonearm With Hydraulically Damped Lift Control And Lockable Rest
- Anti-Resonance Mdf (Medium Density Fiberboard) Plinth With Teak Simulated Wood Veneer
- Built-In Switchable Phono Pre-Amplifier For Phono Or Line-Level Output
- Ac Adapter Handles Ac/Dc Conversion Outside Of The Chassis, Reducing Noise In The Signal Chain
- Includes Dual Rca (Male) To Dual Rca (Male) Stereo Cable, 45 Rpm Adapter, Rubber Mat, And Removable Hinged Dust Cover
Specifications
| Turntable | |
| Type | Belt-Drive Manual Turntable |
| Motor | Dc Servo |
| Drive Method | Belt Drive |
| Speeds | 33-1/3 Rpm, 45 Rpm |
| Turntable Platter | Die-Cast Aluminum |
| Wow And Flutter | < 0.15% Wrms (33 Rpm) At 3 Khz |
| Signal-To-Noise Ratio | >60db |
| Output Level | Pre-Amp “Phono”: 4 Mv Nominal At 1 Khz, 5 Cm/Sec Pre-Amp “Line”: 200 Mv Nominal At 1 Khz, 5 Cm/Sec |
| Phono Pre-Amp Gain | 35 Db Nominal, Riaa Equalized |
| Power Supply Requirements | 100-240v Ac, 50/60 Hz, 0.5 A Max. |
| Dimensions | 420.0 Mm (16.53″) W X 340.0 Mm (13.38″) D X 116.9 Mm (4.6″) H |
| Weight | 3.90 Kg (8.60 Lbs.) Without Dust Cover |
| Accessories Included | Dust Cover, Platter, Turntable Mat, Drive Belt, Counterweight, At-Hs4 Headshell, At-Vm95c Stereo Cartridge, 45-Rpm Adapter, Rca Audio Cable (Approx.. 1.0 M (3.3′)), Ac Adapter (Approx. 1.5 M (4.9′)) (Ad-Sa1205we), Dust Cover Hinges |
| Notes | Tonearm Type: Static Balanced Straight Aluminum Pipe Tonearm Effective Arm Length: 223.6 Mm Overhang: 18.6 Mm Tracking Error Angle: <2 Degrees Applicable Cartridge Weight: 12-17 G Stylus Pressure Adjustment Range: 0-3 G Ac Adapter: 12 V, 0.5 A Replacement Stylus: At-Vmn95c |
