Powerful, road-tough unit for medium and larger gigs.

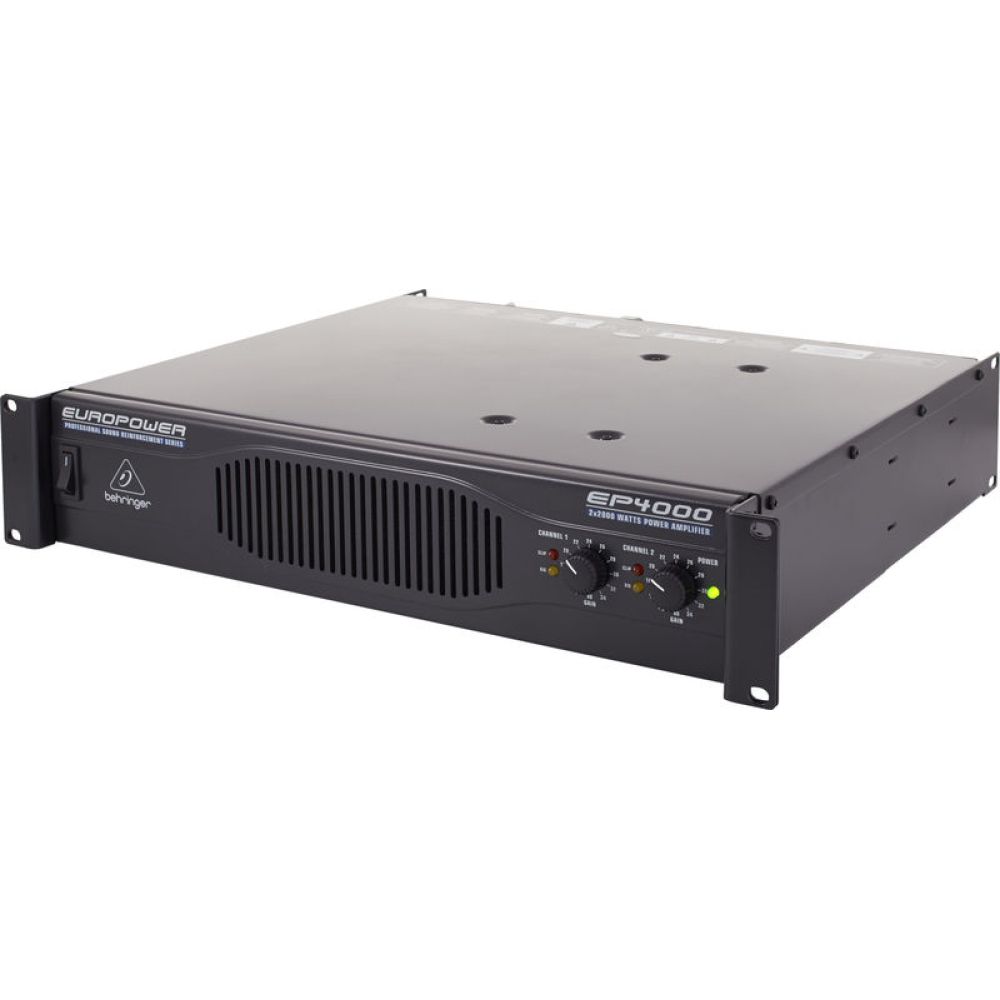

The rackmount EP4000 EUROPOWER power amp from Behringer delivers up to 2 x 2,000W at 2
ohms, 2 x 1400W at 4 ohms, and 4,000W at 4 ohms in bridge mode. Its Precise Power, Signal, and
Clip LEDs let you monitor performance, and its XLR and 1/4" TRS jacks allow for compatibility with
any source. Selectable low-frequency filters let you remove distracting infra-sound frequencies, and
its independent DC and thermal overload protection on each channel automatically protects your
amp and speakers without stopping the show. The Behringer EUROPOWER’s professional speaker
connectors and "touch-proof" binding posts support most speaker wiring systems.

FEATURES

2 x 2,000 Watts into 2 ohms; 2 x 1400 Watts into 4 ohms; 4,000 Watts into 4 ohms (bridge mode)
Precise Power, Signal and Clip LEDs to monitor performance
XLR and 1/4" TRS input connectors for compatibility with any source
Professional speaker connectors and "touch-proof" binding posts support most speaker wiring
systems
Selectable low-frequency filters (30Hz or 50Hz) remove distracting infra-sound frequencies
Independent limiters per channel offer reliable protection against overload and distortion
High-current toroidal transformer for ultra-high transient response and absolute reliability
Ultrareliable Toshiba/Fairchild power transistors
Independent DC and thermal overload protection on each channel automatically protects
amplifier and speakers without shutting down the show
Back-to-front ventilation system including air filter for reliable operation
"Built-like-a-tank," impact-resistant, all-steel 2U rackmount chassis
High-quality components and exceptionally rugged construction ensure long life

Conceived and designed by Behringer Germany

SPECIFICATIONS
Output Power

20Hz“20kHz @ 0.1% THD, both channels driven:
8Î per channel-550W
4Î per channel-950W
2Î per channel-1250W
RMS @ 1% THD (sine wave), bridged mode:
8Î-1750W
4Î-2400W
Peak Power, both channels driven:
8Î per channel-750W
4Î per channel-1400W
2Î per channel-2000W
Peak Power, bridged mode:
8Î-2800W
4Î-4000W
Distortion: <0.02%
Frequency Response:
At 10dB below rated output Power-20Hz“20kHz,
At -3dB points-5Hz“50kHz
Damping Factor: >300 at 8Î
Noise: -100dB unweighted, 20Hz“20kHz
Voltage Gain: 40X (32dB)
Input sensitivity: 1.15V (+3.4dBu) VRMS at 8Î
Input impedance: 10kOhm unbalanced, 20kOhm balanced

Controls:

Front: Power switch,gain control (channels 1 and 2)
Rear: DIP switches (10x)
Indicators:
Power: Green LED
Clip: Red LED, 1 per channel
Signal: Yellow LED, 1 per channel
Inputs: Balanced XLR and 1/4" TRS connectors
Outputs: Touch-proof binding posts and professional speaker connectors
Cooling: Continuously variable-speed fan, back-to-front airflow
Amplifier Protection: Full short-circuit, open circuit, thermal, and HF protection
Load Protection: Turn on/off muting, AC coupling
Output Circuit Type: Class H complementary linear output
Mains Voltage/Breaker:
100-120V, 50/60Hz, 15 amps
220-230V, 50/60Hz, 8 amps
Power Consumption: 2600W
Mains connector: Standard IEC receptacle
