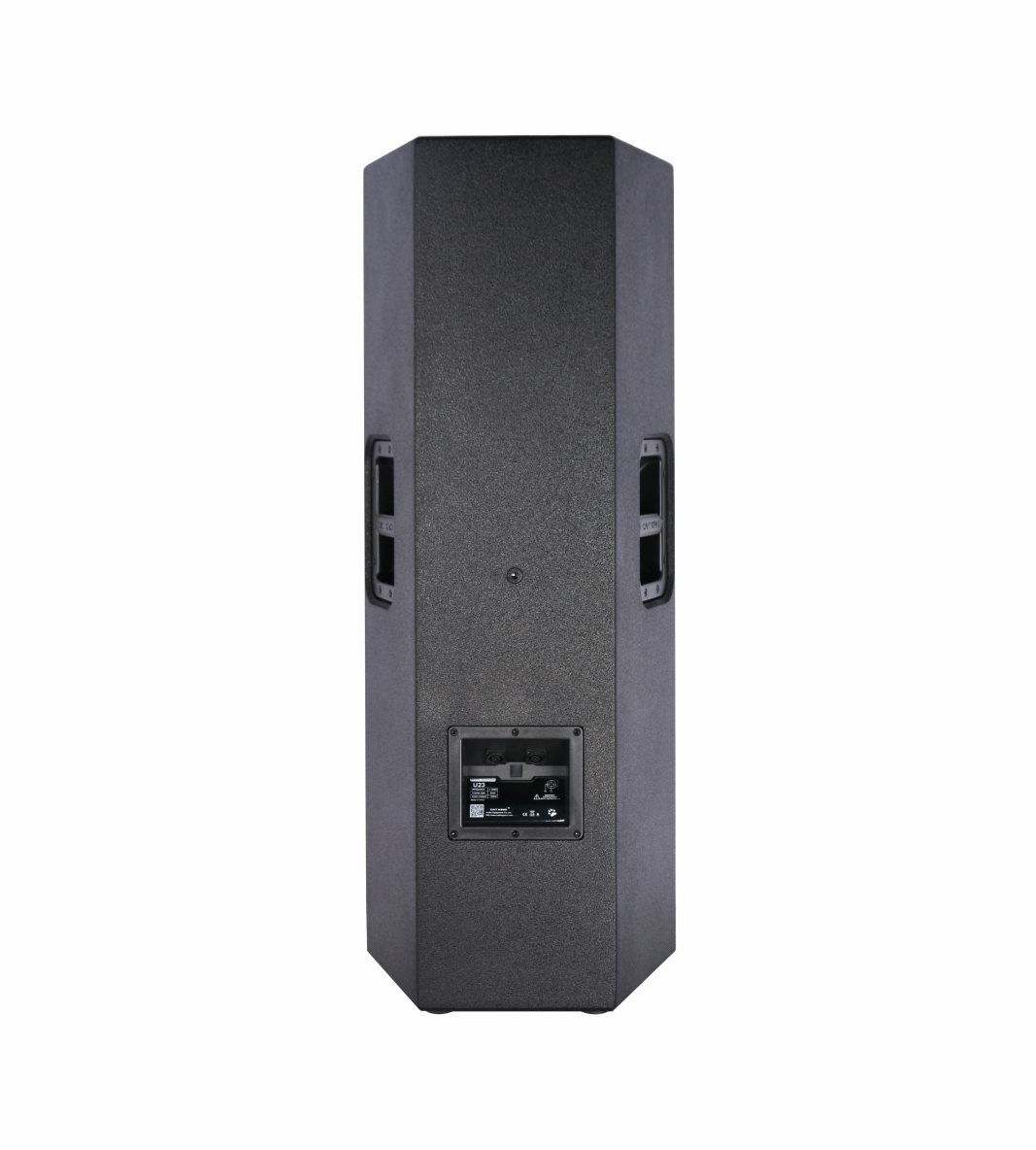

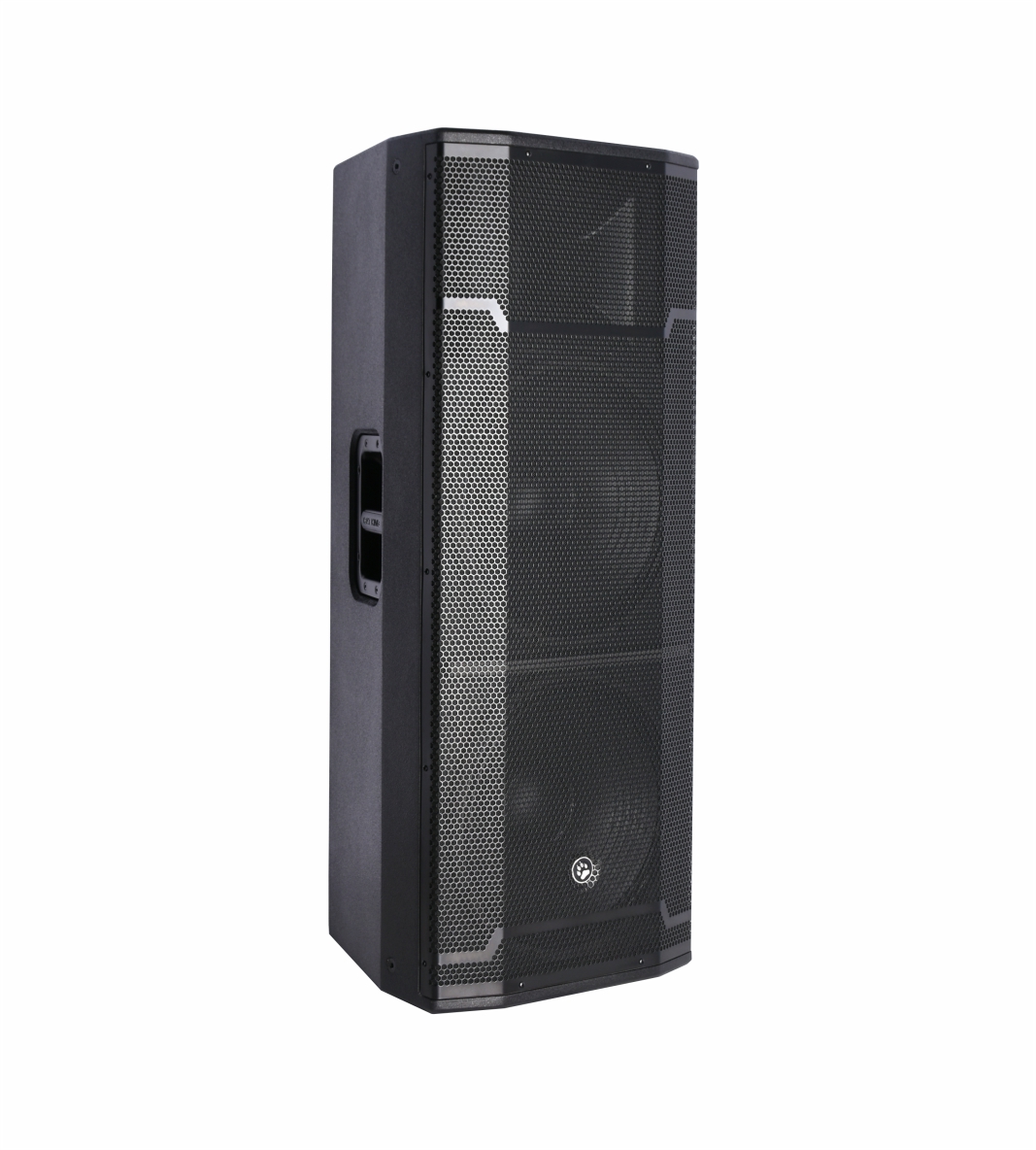

Cat King U25
PLAY NOW PAY LATER
R12,850.00
U-Series
The classic U Series passive loudspeakers offer exceptional sensitivity, frequency response and power handling capabilities to support a range of touring and fixed sound reinforcement applications at a competitive price. Ideal for live sound reinforcement of vocals and instruments
- Two-way, two-unit, multi-purpose, full-range professional loudspeaker
- 15-inch woofer, 76.2mm heat-dissipating voice coil
- 75 -inch titanium diaphragm high-frequency driver compressor with 44.4mm voice coil assembly
- 85 °x 60 ° constant coverage for even, smooth on-axis and off-axis response
- Suitable for stage monitoring
- Bottom-mounted ⌀35mm support for applications requiring pole or tripod mounting
- 9 M8 screw suspension points for secure deployment in lightweight installations
- High-frequency signal limiting design protects the high-frequency driver from excessive power without interrupting performance
U5 is a multi-purpose professional loudspeaker, a high-output two-way full-frequency point source optimized for installation applications, equipped with a 1.75″ (44.4mm) titanium high-frequency driver and a 3″ (76.2mm) high-efficiency 15″ low-frequency driver with a heat dissipation voice coil . It can play a role in a variety of different applications and provide a continuous high boost level and sufficient carrying power. They can be integrated into an independent system or used in combination with a wider range of CAT KING product portfolios. Unlike traditional products: horizontal use on the ground to meet stage monitoring applications is an extension of the product’s functionality. U5 uses all CAT KING self-developed drive units. The parameters and performance of the units are also tailored by engineers according to their product positioning, in order to obtain better product cost performance. It has flexible and diverse installation and use methods: tripod support, hoisting, and combination with a subwoofer through a support rod. It can meet your different on-site sound reinforcement needs.
Application
Bars, cafes, banquet halls, conference rooms, gyms, leisure centers, sound field supplement.
Related equipment
It is recommended to use with M15B/18B/LA-18SUB subwoofer to obtain a wider frequency response range.
Technical Specifications
| Model Name | U5 |
| Product Design | Two-way multi-purpose professional speaker |
| Product Type | 15-inch full-range passive speaker |
| Rated impedance | 8 Ohm |
| Power handling capability: | |
| Rated power RMS (W) | 400W |
| Long-term maximum signal power MUSIC (W) | 800W |
| Short-term peak power PEAK 10ms (W) | 1600W |
| Sensitivity | 98dB SPL 1W@1m |
| Frequency response (+-3dB) | 58 Hz-18 kHz |
| Frequency response (+-10dB) | 52 Hz-20 kHz |
| Crossover frequency | 2.0 kHz (passive) |
| Sound pressure level (1M) continuous/maximum | 124dB/130dB (calculated value) |
| Driver part | |
| LF low frequency driver: | LF15170F-76 |
| LF size | 380 mm / 15 in |
| LF voice coil size | 76.2 mm / 3 in |
| LF magnet structure | 170mm Ferrite Coil |
| LF Frame Material | Aluminum cone |
| HF high frequency driver: | HF120F-1.75 |
| HF high frequency driver type | Dome Compression Driver |
| HF coil size | 44.4 mm / 1.75 in |
| HF port size | 26 mm / 1 in |
| HF high frequency magnet structure | 120mm Ferrite Coil |
| HF diaphragm material | Titanium |
| Horn waveguide type | Constant rectangular |
| Nominal Coverage (HxV) | 85° × 60° |
| Protect | Independent HF electronic RMS limit |
| Box and accessories | |
| Input Connectors | 2 x XLR (1+ / 1-) Junction Box |
| Rigging and Hardware | 9 M8 bolt eye mounting points |
| handle | 1 side |
| Box shape | Trapezoidal CNC manufacturing |
| Housing material and surface treatment | 18mm MDF plywood |
| Shell coating and color | Durable black fine dots |
| Grille Materials and Treatments | Black perforated mesh Moisture-proof and dust-proof acoustic mesh backing |
| Move and protect | 4 rubber feet on the bottom, 4 rubber feet on the sides |
| Product Dimensions – Unpackaged: | |
| Front height | 705 mm (27.76 in) |
| Rear height | 705 mm (27.76 in) |
| Front width | 438 mm (17.24 in) |
| Rear width | 240 mm (9.45 in) |
| depth | 417 mm (16.42 in) |
| Product Dimensions – Packaging: | |
| high | 745 mm (29.33 in) |
| Front width | 480 mm (18.9 in) |
| Rear width | 480 mm (18.9 in) |
| depth | 455 mm (17.91 in) |
| weight: | |
| net weight | 26 kg (57 lbs) |
| gross weight | 29 kg (64 lbs) |
