Description

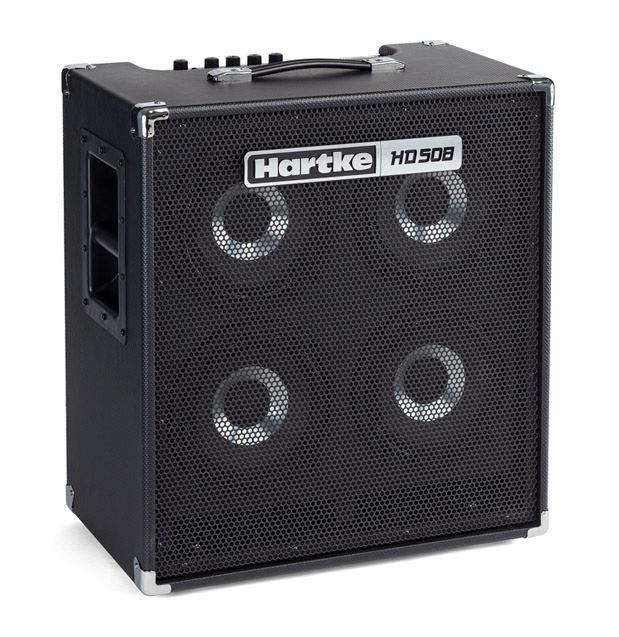

Hartke HD508

Bass Combo Amp

Packing Four 8″ Hartke Patented Hydrive Speakers And A 500-Watt Class D Amplifier Into A Sleek Enclosure Weighing Only 49 Pounds, The HD508 Provides Exceptional Bass Tone To Any Rehearsal, Stage Or Studio.



Features:

• Lightweight Class D Combo Amplifier That Weighs 49lb

• 500 Watts Of Power

• Four 8″ Hydrive Paper/Aluminum Hybrid Cone Drivers

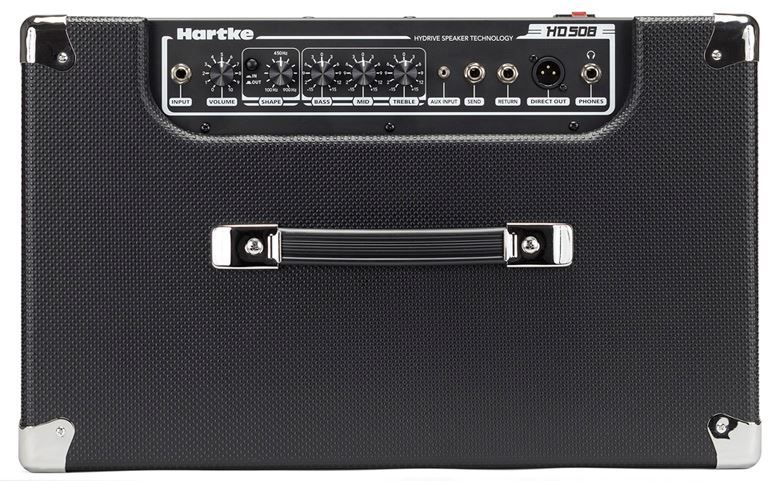

• Top-Mounted Control Panel

• Hartke’s Shape EQ Knob With Variable Filter

• 3-Band (Bass, Mid, Treble) EQ

• XLR Direct Output

• 1/8″ Stereo Aux Input

• 1⁄4″ Headphone Output

• 1⁄4″ Bass Input

• Effects Loop

• Perforated Steel Grille

• Molded Strap Carry Handle

• Two Metal Side Carry Handles

• Four Removable Casters Included



Specifications

• Amplifier: Class D, Top-Mounted Control Pane

• Rated Output Power: 500W Peak

• Rated Input Level: 77.46mv Rms (@1khz)

• Speakers: Four 8″ Paper/Aluminum Cone Drivers

• Total Harmonic Distortion: 0.54% (@1db Below Rated Output)

• Signal To Noise Ratio: 1W/49.3dbu (1Wrms @1khz)

• Equalizer Center Frequency: Bass: 70Hz, Mid: 700Hz, Treble: 5khz

• Controls: Volume, Shape, Bass, Mid, Treble

• Shape Control: 100Hz–900Hz

• Input: 1/4″ Instrument, 1/8″ Stereo Aux

• Outputs: 1/4″ Headphone, XLR Direct Out

• Effects Loop: 1/4″ Send, 1/4″ Return

• Cabinet Design: 5/8″ Plywood, Shelf Port

• Grille: Perforated Metal

• Handles: Molded Strap (Steel Reinforced), 2x Inset Handles

• Additional: 4x Removable Casters, 8x Protective Corners
